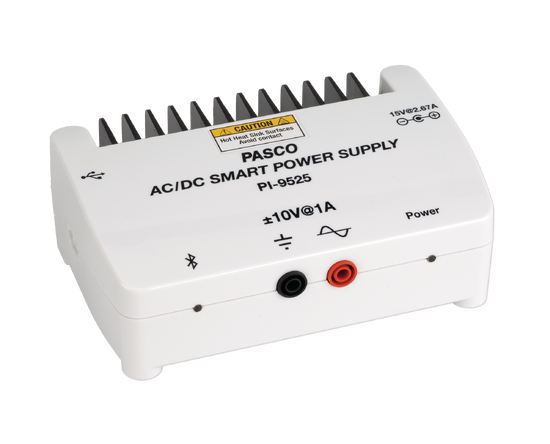

The AC/DC Smart Power Supply is a Bluetooth Low Energy wireless signal generator. It outputs DC as well as sine, square, positive square, and triangle AC signals. The maximum power output is 10 V at 1 amp and the maximum output frequency is 100 kHz.
The AC/DC Smart Power Supply is controlled through PASCO Capstone or SPARKvue software. The ability to control this power supply through Bluetooth makes it possible for users of Chromebooks, Android, and Apple IOS devices to do experiments with wireless sensors that require a power source.
Features
- Maximum Power: 10 V @ 1A
- Output Functions: DC, sine, square, triangle
- Output Frequency Range: 0.001 Hz to 100 kHz

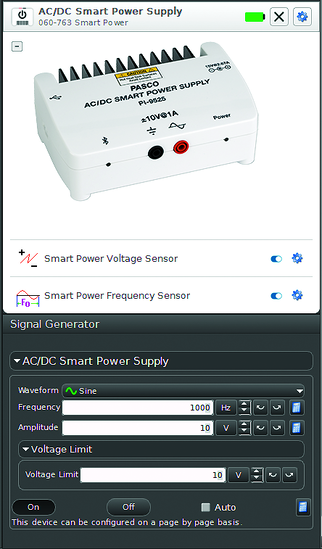

- Software controls: Choose wave form, frequency, amplitude, and on/off in PASCO Capstone or SPARKvue
- Bluetooth or USB data connection
- Built-in output voltage sensor
- Current limit warning

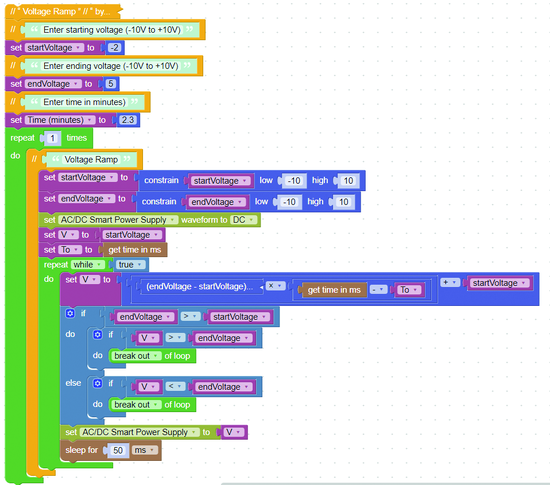

- Programmable using Blockly code in PASCO Capstone or SPARKvue
- Blockly Library contains special functions for a long ramp and stepping through resonant frequencies.
Applications
- Power the Wave Driver (WA-9855) to show resonances in a vibrating string
- Power the Wave Driver (WA-9855) to show resonances in a Chladni plate
- Power the Mechanical Oscillator/Driver (ME-8750) to drive the oscillation of a Smart Cart and spring system
- Power a String Vibrator (WA-9857A) to show resonances in a vibrating string
- Use as a power source for DC and AC electronics experiments
What’s Included
- 1x AC/DC Smart Power Supply
- 1x Power Adapter 15 V @ 2.67 A
- 1x USB-C to USB-A cable
Product Specifications
| Maximum Power Output | 10 V @ 1 A |
| Waveforms | DC, sine, square, positive square, triangle |
| Output Frequency Range | 0.001 Hz to 100 kHz; resolution 0.001 Hz |
| Power Adapter | 15 V @ 2.67 A |
| Output Voltage Sensor Range | ±10V |
| Output Voltage Sensor Maximum Sample Rate | USB: 100 kHz (monitoring); Bluetooth: 20 kHz (continuous) |
| Data Connectivity | USB-C and Bluetooth 5.2 |
| Output jacks | Safety 4 mm banana jacks |
| Variable Duty Cycle | For positive square wave |
Activities
- 01) Ohm’s Law Using AC/DC Smart Power Supply
- The purpose of this experiment is to verify Ohm’s Law for commercially manufactured resistors and to examine the limits of validity for Ohm’s Law. The behavior of resistors, a diode, and a light bulb are examined.
- 02) Series and Parallel Circuits Using AC/DC Smart Power Supply
- Series/Parallel circuits are reduced to an equivalent resistance and that resistance is verified by measuring the total current and total voltage. In a second stand-alone experiment, the behavior of lamps in series, parallel, and series/parallel is qualitatively examined.
- 03) Kirchhoff’s Circuit Laws Using AC/DC Smart Power Supply
- Kirchhoff’s Junction Rule and Loop Rule form the basis of all circuit analysis. Here we verify the laws for a resistive circuit.
- 04) RC Circuit Using AC/DC Smart Power Supply
- The manner by which the voltage on a capacitor decreases is studied. The half-life for the decay is measured directly and also calculated using the capacitive time constant.
- 05) General Properties of Diodes Using AC/DC Smart Power Supply
- The purpose of this experiment is to investigate the characteristic curves (I vs. V) of various types of diodes and to determine their “turn-on” voltages.
| Manuals | ||
|---|---|---|
| AC/DC Smart Power Supply Manual | ||
