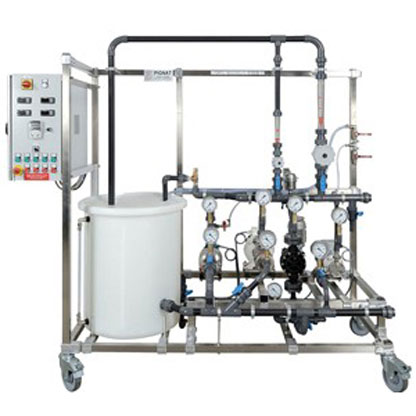

PIGNAT Bench of 4 Different Pumps – BCP4000

Product Code: BCP4000

Description

Study and comparison of four industrial pumps (centrifugal, volumetric screw, volumetric piston, volumetric turbine)

Study of the characteristics of each pump (flow curve, pressure)
Plot the characteristic curve for different speeds of rotation
Determination of efficiency electrical and hydraulic power

GENERAL SPECIFICATIONS

  • 200 L PE feeding tank, two areas of operation: Suction and discharge.
  • Centrifugal pump in SS, suction and discharging pressure gauges. Variable flowrate.
  • Axial rotor volumetric pump. Suction and discharging pressure gauges. Variable flowrate.
  • Dosing gear pump. Variable flowrate. Anti-pulsing pot.
  • Neoprene Turbine pump Impulse drive flexible. Variable flowrate.

Instrumentation

  • 8 manometers.
  • 2 flowmeters
  • Level detector.



Dim : 235 x 75 x 205 cm – 300 kg
SS tubular framework 40 x 40mm

For a complete product data sheet please call 1-877-967-2726.
