NIRYO: IO Adapter

Product Code: NO-IO

Description

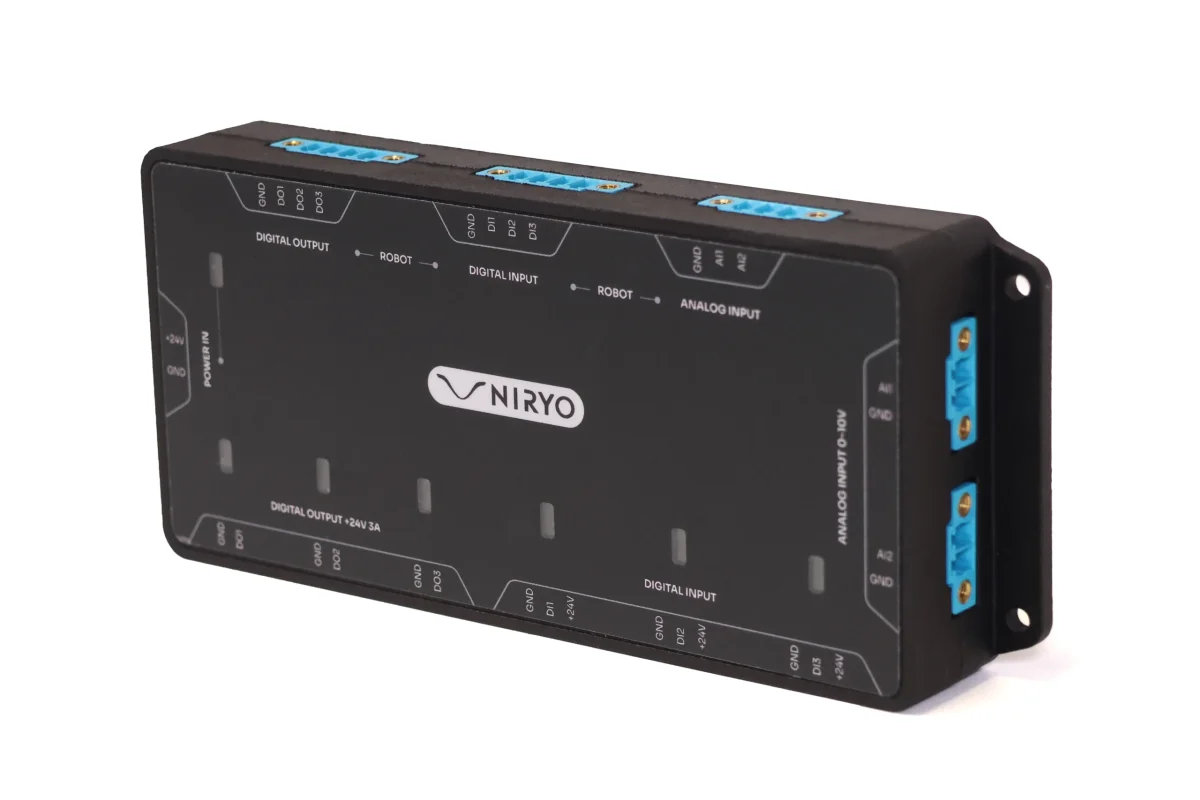

The IO Adapter easily connects the NED2 or NED3PRO to sensors, actuators, and 24 V PLCs (Programmable Logic Controllers).


Digital Outputs​

  • Robot side connector : TBP02P1W-381-04BE Same Sky
  • Robot side signal : GND, DO1, DO2, DO3
  • Robot side signal : 5V – 250mA
  • PLC side connector : TBP02P1W-381-02BE Same Sky
  • PLC side signal : 24V – 3A max
  • PLC side signal :
  • GND DO1
  • GND D02
  • GND DO3

Digital Inputs

  • Robot side connector : TBP02P1W-381-04BE Same Sky
  • Robot side signal : GND, DI1, DI2, DI3
  • Robot side signal : 5V
  • PLC side connector : TBP02P1W-381-02BE Same Sky
  • PLC side signal :
  • GND DI1 +24V [PNP]
  • GND DI2 +24V [PNP]
  • GND DI3 +24V [PNP]

Analog Inputs

  • Robot side connector : TBP02P1W-381-04BE Same Sky
  • Robot side signal : GND, AI1, AI2
  • Robot side signal : 0 to 5V
  • PLC side connector : TBP02P1W-381-02BE Same Sky
  • PLC side signal : 0 to 10V
  • PLC side signal :
  • GND AI1
  • GND AI2

Sizes

  • Width: 158mm
    Depth: 96mm
    Height: 45mm
